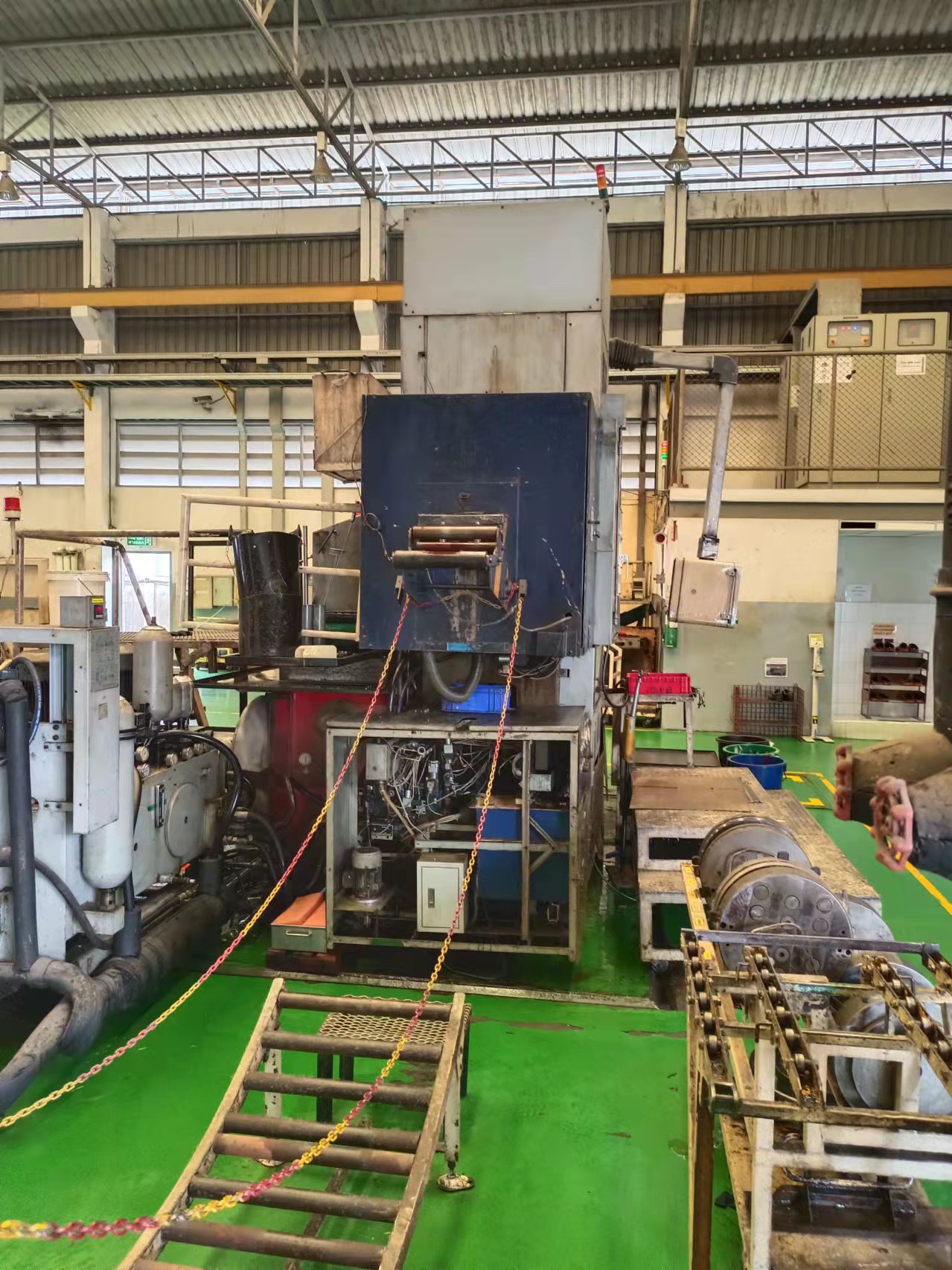

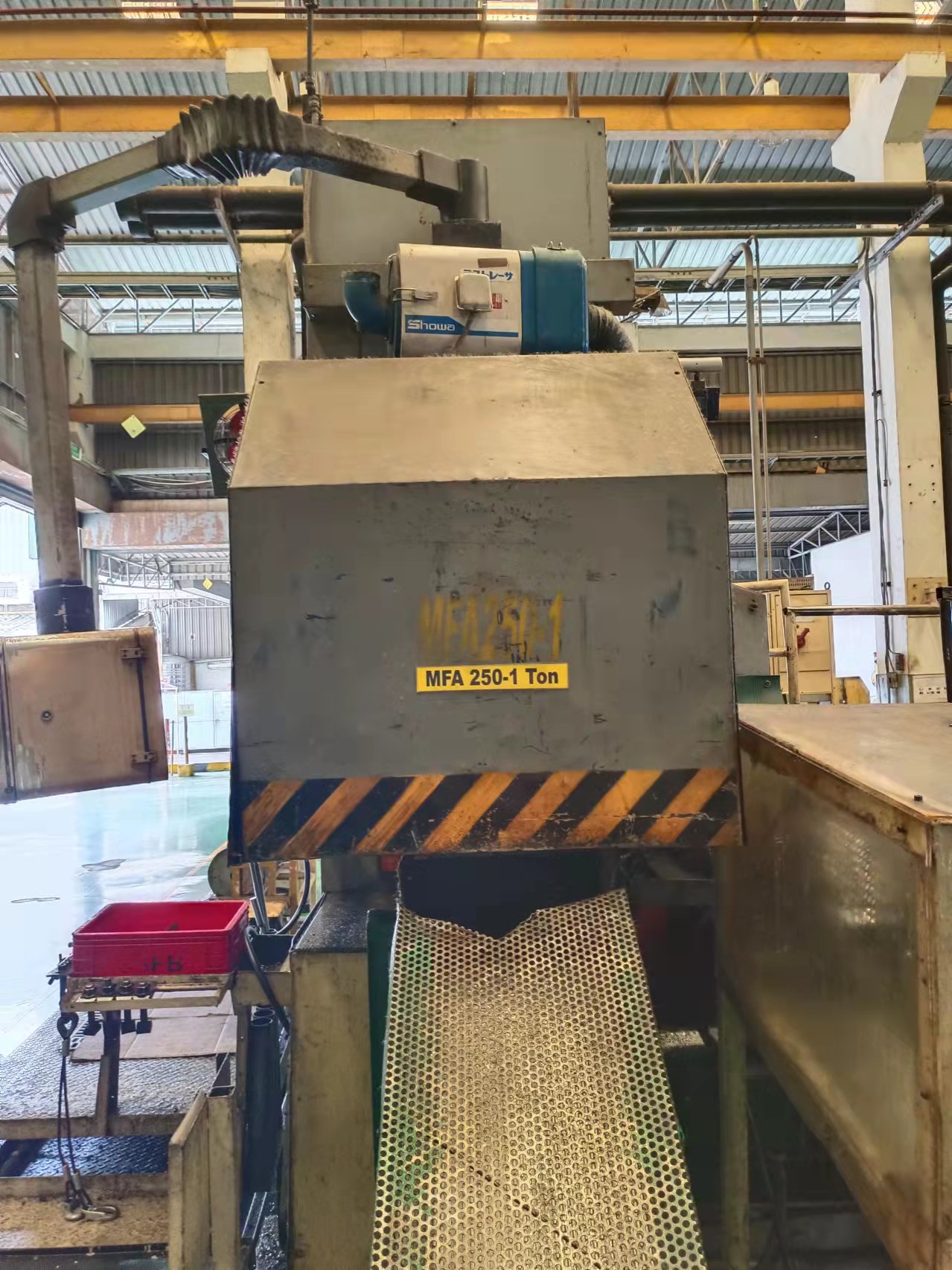

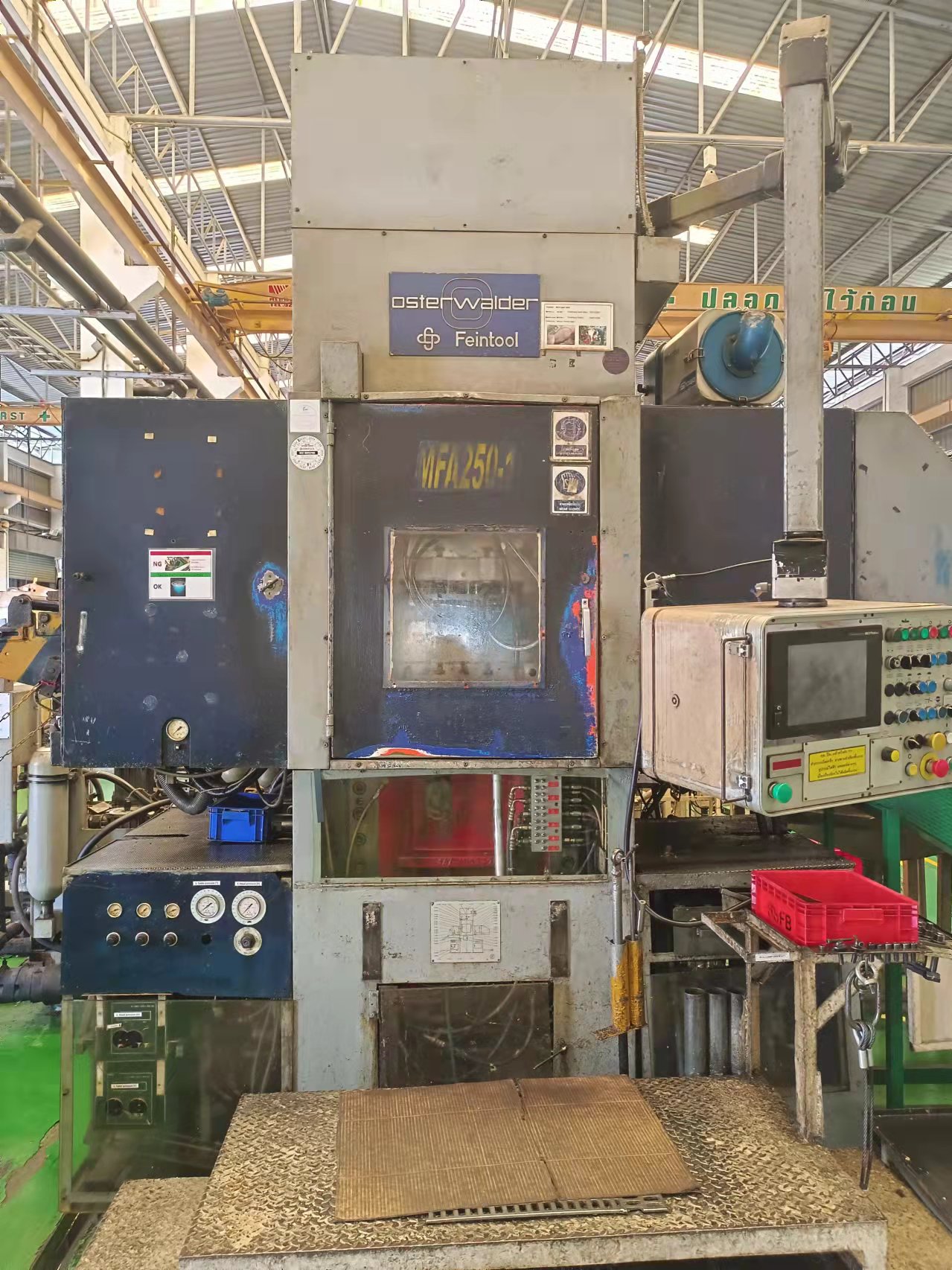

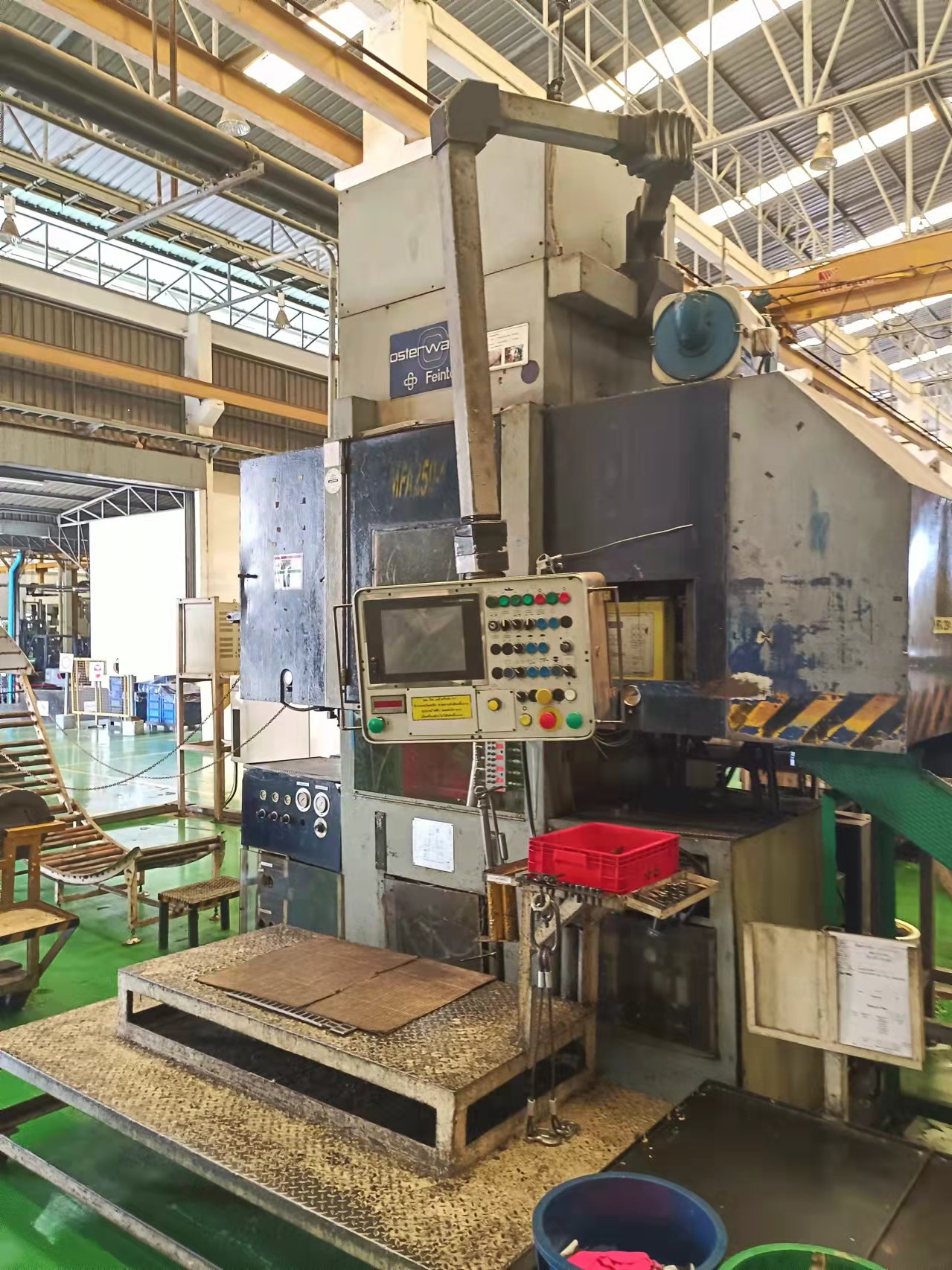

FEINTOOL MFA 2500
| Capacity | 250 ton |
|---|---|
| V – Ring nominal force | 30 - 125 ton |
| Counter ram nominal force | 30 - 125 ton |
| Ram stroke | 64 - 67 mm |
| Table surface area | 560 x 600 mm |
| Slide area | 560 x 560 |
| Number of strokes | 80 s.p.m. |
| Weight of machine approx. | 14.000 kg |
| Serial number | |
|---|---|
| Construction year | 2000 |
Standard features
Maximum material thickness: 10 mm
Additional equipment
including roller feed
including waste-cutting shears
Automation
Straightening unit, model RLM 25-S
Material width 50–250 mm
Material thickness 6–10 mm
Number of straightening rollers: 5
Diameter of straightening rollers: 88 mm
Decoiler USM 2000 AS
Coil weight: 2 tonnes
Coil outer diameter: approx. 1,500 mm
Coil inner diameter: approx. 508 mm
Material width: 50–250 mm
